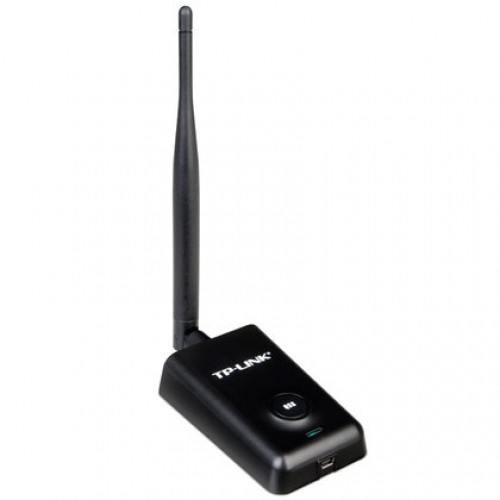

150Mbps High Power Wireless USB Adapter

What This Product Does
TP-LINK TL-WN7200ND is a 150Mbps high power wireless adapter that allows users to enable their PCs or notebooks with extremely powerful wireless capability to deliver performance enhancements. The adapter adopts high power design which offers up to 8 times the range of conventional adapters. One of the TL-WN7200ND's best features is its stronger penetrability, which can effectively ensure that signal does not lose signal intensity and remains reliable when it passes through multiple walls or floors.

High Power for Strong Penetrability
With high transmission power, the TL-WN7200ND delivers up to 8 times the range of normal power USB adapter. Moreover, TL-WN7200ND is featured with its incredible and strong penetrability, making that you don't have to be physically tethered to the walls or floors to access the Internet.

High Receive Sensitivity for Reliable Signal
TL-WN7200ND features its high receive sensitivity, which could let you move further away from the access point while still maintaining the same wireless signal. In this case, using TL-WN7200ND means that you don't have to move the laptop like a divining rod, and you can easily pick up the network with its strong sensitivity.

5 dBi External Detachable Antenna
External antenna can be rotated and adjusted in different directions to fit various operation environments, brings performance enhancement than internal antenna under normal indoor usage. For even more demanding applications, the antenna can also be replaced with diverse indoor antenna or directional antenna (using standard RP-SMA connector) to show even greater flexibility and wider wireless coverage.

One Button for Security Setup
Compatible with Wi-Fi Protected Setup™ (WPS), TL-WN7200ND supports Quick Security Setup that allows users to simply press the "QSS" button on the exterior, instantly establishing a highly secured connection. Not only is it faster than normal security setups but more convenient in that you don't need to remember any password!

Desktop-Style Design & 1.5m USB Extension Cable
Besides the fashionable and novelty exterior, the desktop-style design is beneficial for the signal reception in various application environments, guaranteeing the smooth and stable signal. And TL-WN7200ND also provides 1.5m USB extension cable, convenient for your installation, even for the desktop equipment.

Bundled CD For Easy Operation
TL-WN7200ND comes with a CD with utility that helps you complete the software installation and wireless network settings, including security configurations and wireless connection, which is convenient for users, even for novice users.

HARDWARE FEATURES
Interface Mini USB
Button Quick Security Setup (QSS) Button (WPS Compatible)
Dimensions ( W x D x H ) 3.6 x 2.4 x 1.0 in. (90.8 x 60.8 x 24.5mm)
Antenna Type Detachable, Omni Directional (RP-SMA)
Antenna Gain 5dBi
WIRELESS FEATURES
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency 2.400-2.4835GHz
Signal Rate 11n: Up to 150Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
EIRP <20dBm (EIRP, For countries using CE Standards)
<27dBm (EIRP, For countries using FCC Standards)
Reception Sensitivity 130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Wireless Modes Ad-Hoc / Infrastructure mode
Wireless Security Support 64/128 bit WEP, WPA-PSK/WPA2-PSK
Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM
Advanced Functions WMM,Soft AP (For Windows XP/ Vista), PSP X-LINK(For Windows XP), Roaming
OTHERS
Certification CE, FCC, RoHS
Package Contents Wireless Adapter TL-WN7200ND
5dBi detachable Omni directional antenna
Resource CD
Quick Installation Guide
1.5m USB Extension Cable
System Requirements Windows 7(32/64bits), Windows Vista(32/64bits), Windows XP(32/64bits), Windows 2000
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
