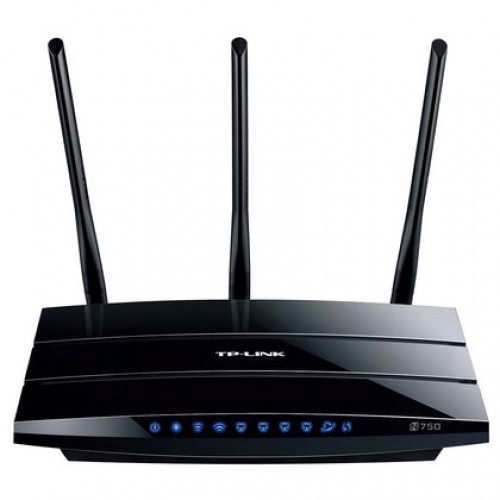

TP-Link TL-WDR4300 N750 Dual-Band Wireless Router

Simultaneous 2.4GHz 300Mbps and 5GHz 450Mbps connections for 750Mbps of total available bandwidth
2*USB 2.0 port convenient for network-connected users to share files through the device’s FTP server
Built-in media server allows users to share music, video and photos with Windows Media Player, PS3 or X-BOX 360
The device’s built-in print server supports wireless printing from different computers by connecting a USB printer to the router
Full gigabit ports ensure ultimate transfer speeds
Achieves blazing WAN to LAN throughput of over 800Mbps with hardware NAT
Simple wireless security encryption at a push of the WPS button
WDS wireless bridge provides seamless bridging to expand the wireless network
IP-based bandwidth control allows administrators to determine how much bandwidth is allotted to each PC
Live Parental Controls allow parents or administrators to establish restricted access policies for children or staff
External detachable antennas allow for better alignment and stronger antenna upgrades

HARDWARE FEATURES
Interface 4 10/100/1000Mbps LAN Ports
1 10/100/1000Mbps WAN Port
2 USB 2.0 Port
Button WPS/Reset Button
Wireless On/Off Switch
Power On/Off Button
External Power Supply 12VDC / 1.5A
Dimensions (W X D X H) 9.6x6.4x1.3 in.(243x160.6x32.5mm)
Antenna 3 external detachable dual band antennas (RP-SMA)
WIRELESS FEATURES
Wireless Standards IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Frequency 2.4GHz & 5GHz
Signal Rate 5GHz: Up to 450Mbps
2.4GHz: Up to 300Mbps
EIRP <20dBm
Reception Sensitivity 300M_2.4G: -70dBm
270M_2.4G: -70dBm
195M_2.4G: -71dBm
130M_2.4G: -74dBm
54M_2.4G: -79dBm
6M_2.4G: -94dBm
450M_5G: -64dBm
405M_5G: -64dBm
270M_5G: -67dBm
195M_5G: -70dBm
130M_5G: -73dBm
54M_5G: -79dBm
6M_5G: -92dBm
Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security 64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption
SOFTWARE FEATURES
WAN Type Dynamic IP/Static IP/PPPoE/
PPTP (Dual Access)/L2TP (Dual Access)/BigPond
DHCP Server, Client, DHCP Client List,
Address Reservation
Quality of Service WMM, Bandwidth Control
Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS DynDns, Comexe, NO-IP
VPN Pass-Through PPTP, L2TP, IPSec
Access Control Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
Firewall Security DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding
USB Sharing Support Samba(Storage)/FTP Server/Media Server/Printer Server
Management Access Control
Local Management
Remote Management
OTHERS
Certification CE, FCC,IC, RoHS
Package Contents TL-WDR4300
3 detachable dual band antennas
Power supply unit
Resource CD
Quick Installation Guide
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
