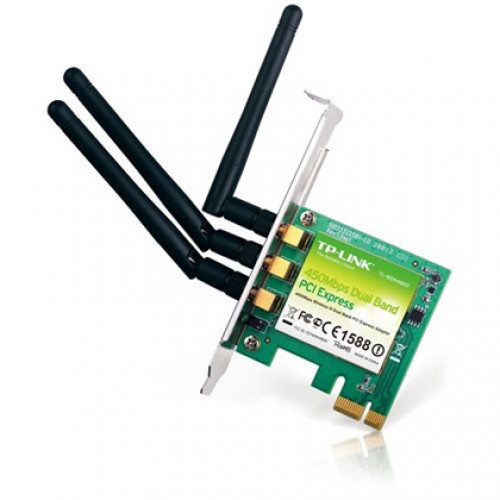

TP Link 450Mbps Wireless N Dual Band PCI Express Adapter

What This Product Does
TP-LINK’s 450Mbps Wireless N Dual Band PCI Express Adapter, TL-WDN4800 allows you to connect a desktop computer to a wireless network and access a high-speed wireless network connection. Complying with IEEE 802.11a/b/g/n, the device can use the 2.4GHz or 5GHz channels and provide wireless speeds of up to 450Mbps which is ideal for users seeking a highly robust, bandwidth intensive wireless networking experience, particularly with HD video streaming and online gaming.

Dual Band
Dual Band is the latest wireless technology allowing the adapter to connect with a 2.4GHz or 5GHz network. This allows you to check e-mail and browse the Internet using the 2.4GHz band or stream HD movies and other media on the 5GHz band. The advantage of working on the 5GHz band is that, unlike the crowded 2.4GHz band shared with microwaves, cordless phones and other wireless networks, it has much less interference and can provide a more stable wireless signal, which is ideal for online gaming and HD video streaming.

Wireless N Speed up to 450Mbps

Both the adapter’s 2.4GHz and 5GHz bands support the maximum speed of up to 450Mbps, which generates a maximum theoretical wireless throughput bringing you a limitless wireless experience.

WPA / WPA2 Encryptions - Advanced Security

WPA/WPA2 encryption standards ensure your wireless connection is safe from intruders.

Easy Operation

TL-WDN4800 comes with a CD utility that helps you complete the software installation and wireless network settings, including security configurations and wireless connection, which makes setting up your network so easy that even for novice users should be up and running in minutes.

HARDWARE FEATURES
Interface    PCI Express x1
Antenna Type    Omni Directional, Detachable (RP-SMA)
Antenna Gain    3 x 2dBi
WIRELESS FEATURES
Wireless Standards    IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a
Frequency    2.4-2.4835GHz
5.180-5.240GHZ
5.745-5.825GHz
Signal Rate    11n: Up to 450Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
11a: Up to 54Mbps(dynamic)
EIRP    <20dBm(EIRP)
Reception Sensitivity    405M_2.4GHz: -68dBm@10% PER
270M_2.4GHz: -70dBm@10% PER
195M_2.4GHz: -71dBm@10% PER
130M_2.4GHz: -74dBm@10% PER
54M_2.4GHz: -79dBm@10% PER
11M_2.4GHz: -87dBm@8% PER
6M_2.4GHz: -94dBm@10% PER
1M_2.4GHz: -99dBm@8% PER
405M_5GHz: -64dBm@10% PER
270M_5GHz: -67dBm@10% PER
195M_5GHz: -70dBm@10% PER
130M_5GHz: -73dBm@10% PER
54M_5GHz: -79dBm@10% PER
6M_5GHz: -92dBm@10% PER
Wireless Modes    Ad-Hoc / Infrastructure mode
Wireless Security    Support 64/128 bit WEP, WPA-PSK/WPA2-PSK,802.1x
Modulation Technology    DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM
OTHERS
Certification    CE, FCC, RoHS,Wi-Fi
Package Contents    Wireless Adapter
Resource CD
Quick Installation Guide
System Requirements    Windows 7(32/64bits), Windows Vista(32/64bits), Windows XP(32/64bits)
Environment    Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
