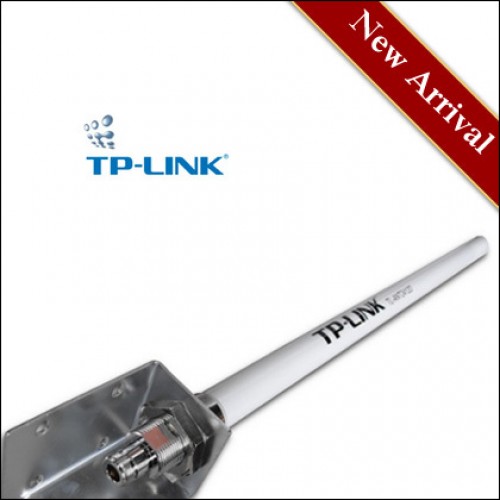

TL-ANT2412D 2.4GHz 12dBi Outdoor Omni-directional Antenna

This antenna operates in the 2.4-2.5 GHz band and is designed for use outdoors

Compliant with 802.11b/g
12dBi signal gain
N Female connecto

Frequency Range
2.4GHz~2.5GHz
Impedance
50 Ohms
Gain
12 dBi
VSWR
1.92 : 1 Max
Polarization
Linear, Vertical
Beamwidth (HPBW)
Horizontal: 360°
Vertical: 6°
Connector
N Female
Cable
N/A
Radiation
Omni-directional
Application
Outdoor
Mount Style
Pole Mount / Wall Mount
Survival Wind Speed
216Km/hr(134Miles/hr)
Lighting Protection
DC Ground
Dimensions (ψ*L mm)
48*1718 mm
Operating Temperature
-10℃~60℃ (14℉~140℉);
Storage Temperature
-40℃~80℃ (-40℉~176℉)
Operating Humidity
10%~90% non-condensing
Storage Humidity
5%~90% non-condensing
Safety, Emission and others
CE, FCC, Compliant with RoHS
